Hastelloy Mesh

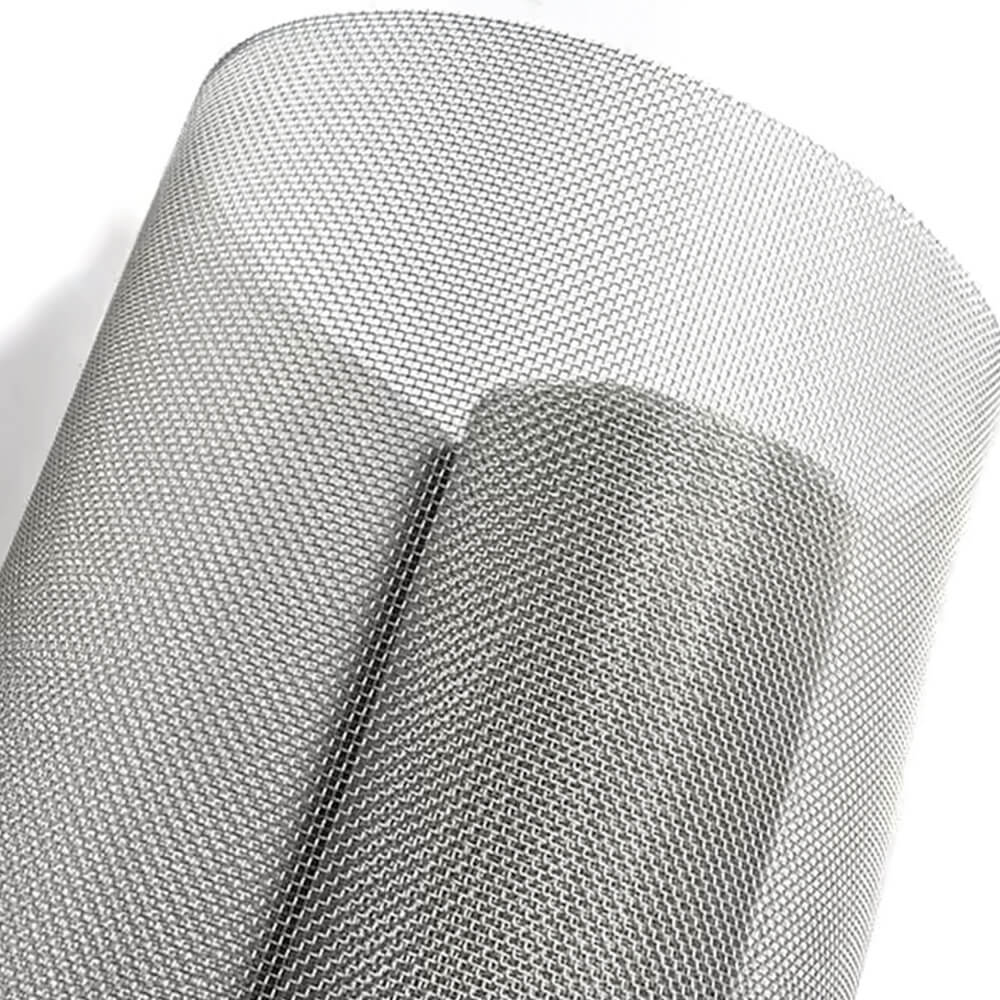

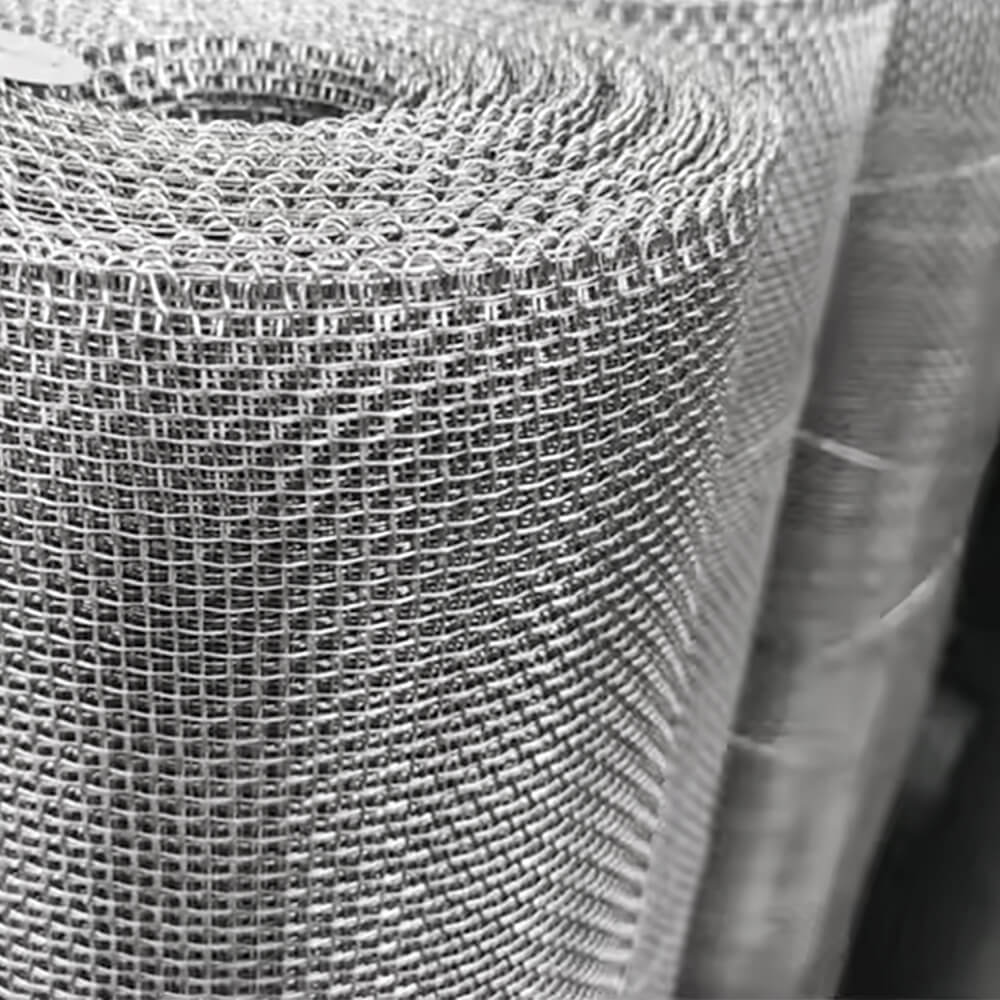

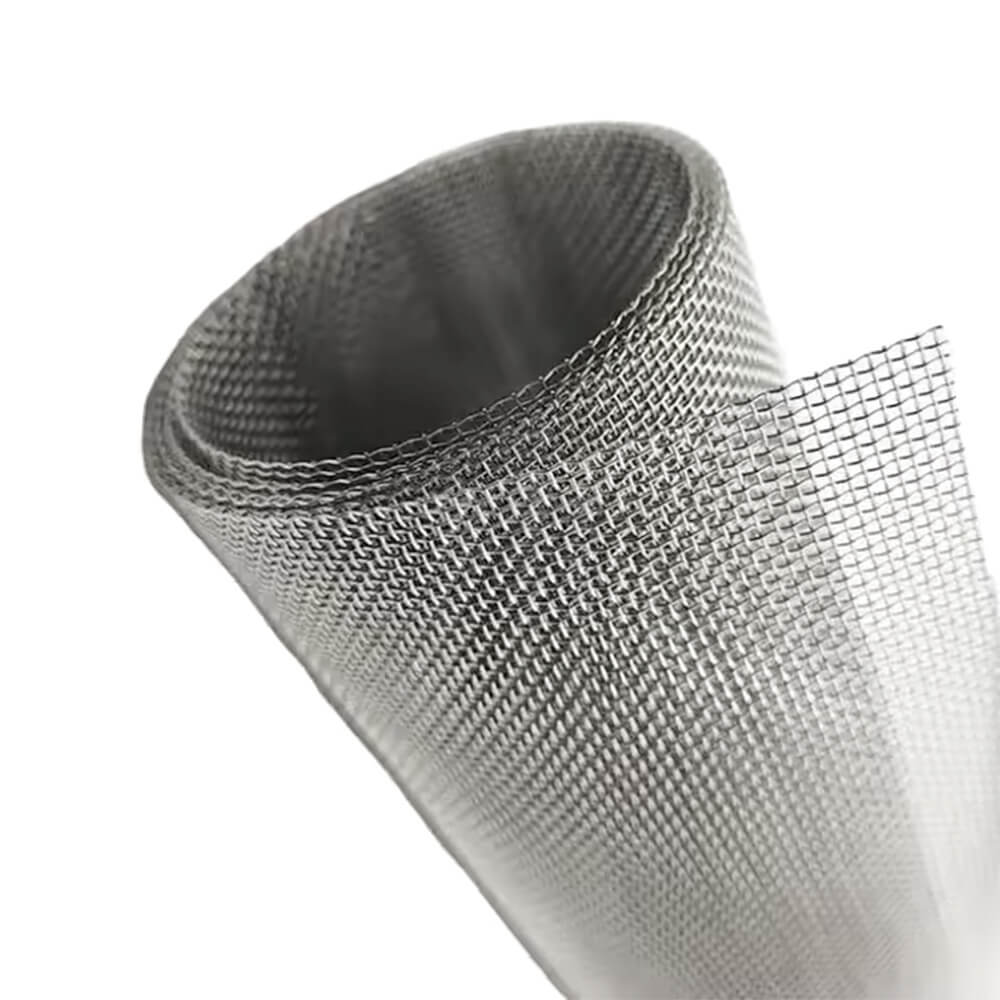

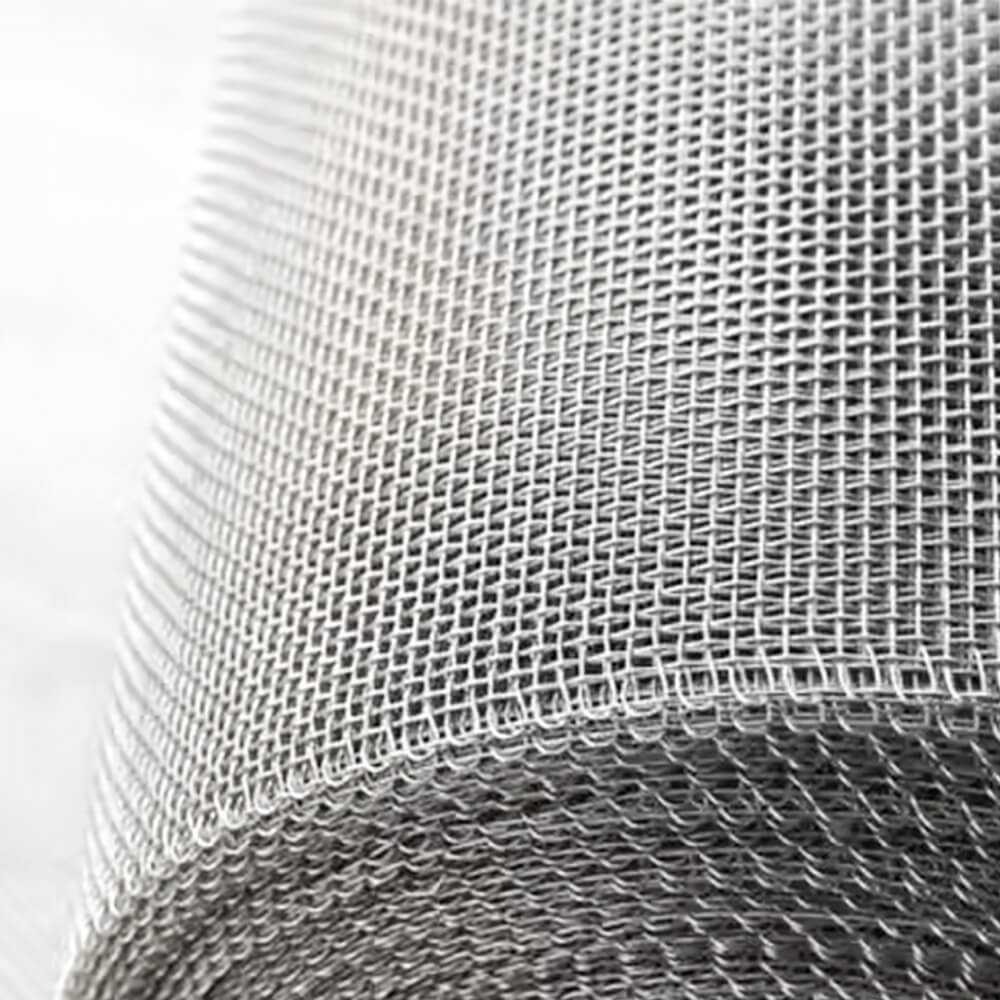

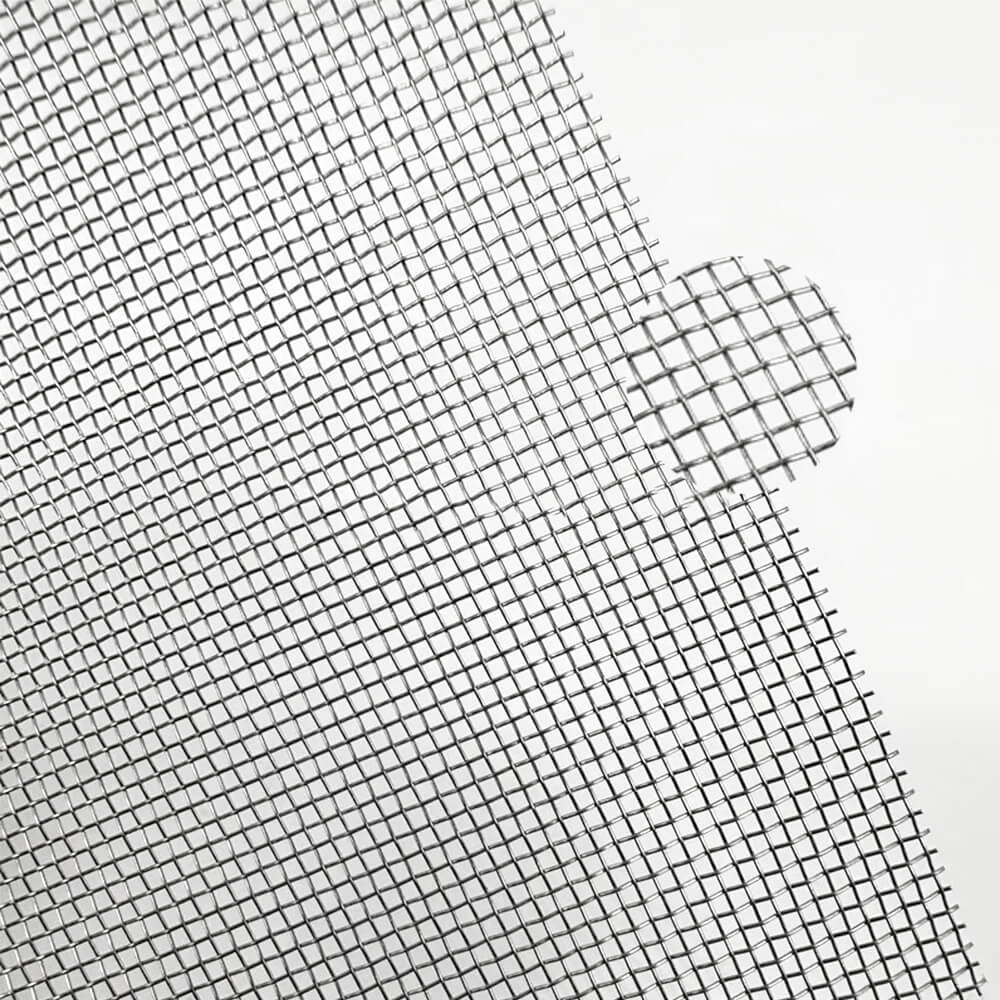

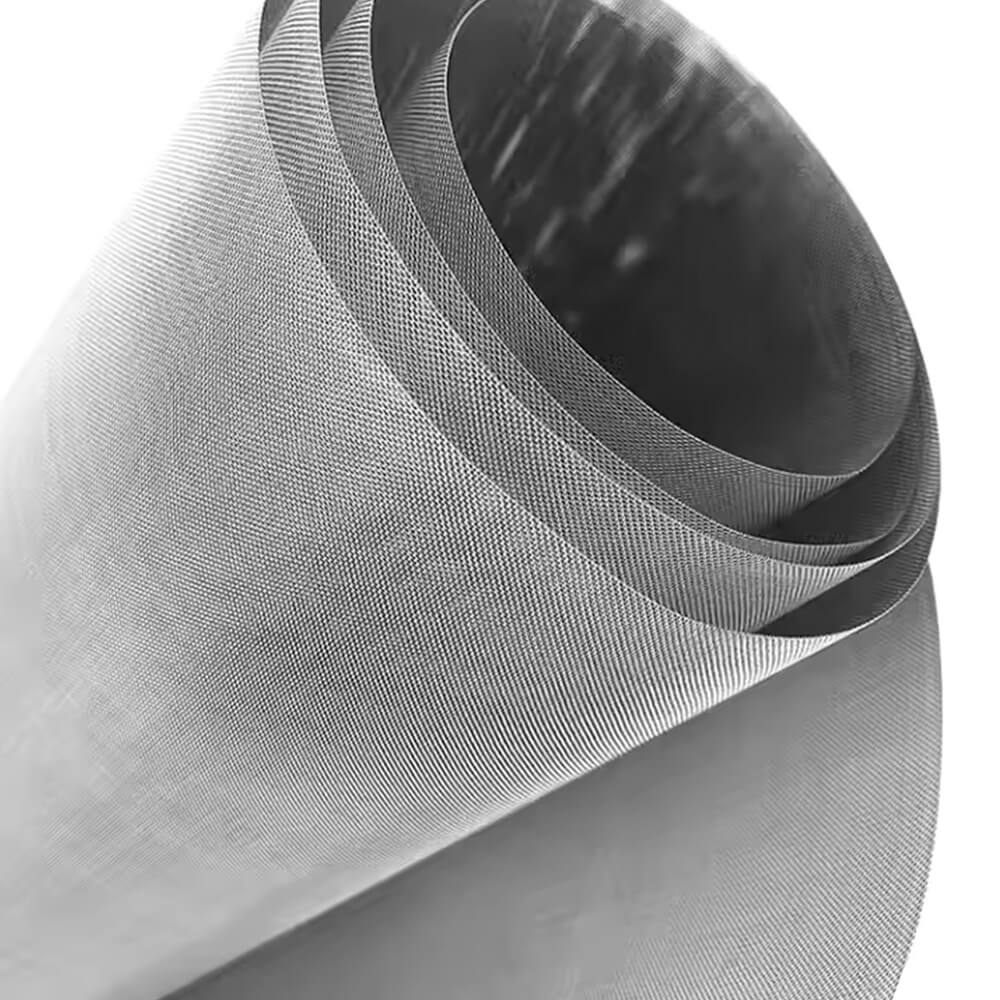

Hastelloy wire mesh is a functional filtration material produced from nickel-based alloy wire through various weaving techniques, such as plain weave, twill weave, and Dutch weave.
Furthermore, this type of woven mesh can serve as a foundational layer to be sintered in combination with multiple other layers, thereby creating a multi-layer sintered mesh. Leveraging its superior strength and rigidity, this composite material is capable of meeting the demands of rigorous operating conditions, such as high-pressure and high-precision filtration applications.
The Differences Between Hastelloy and Standard Stainless Steel
To grasp the core value of Hastelloy wire mesh, one must first recognize a fundamental distinction: it does not compete on equal footing with standard stainless steels (such as 304 or 316L); rather, it represents a relationship of “dimensional dominance”—an overwhelming superiority across all parameters. While 316L stainless steel is already considered a high-quality corrosion-resistant material in conventional industrial settings, the performance gap between it and Hastelloy becomes evident across every dimension when compared side-by-side. Take Hastelloy C276—the most widely utilized variant—as an example. As a nickel-based alloy (containing approximately 57% nickel), it is enriched with high proportions of alloying elements—specifically 16% molybdenum, 15% chromium, and tungsten—imparting it with exceptional resistance to both reducing and oxidizing environments. It maintains stable performance in the presence of strong reducing acids (such as hydrochloric acid and dilute sulfuric acid), as well as oxidizing media (such as wet chlorine gas and hypochlorites); furthermore, its high molybdenum content renders it virtually immune to pitting corrosion in seawater and high-chloride environments. Concurrently, it retains excellent strength and oxidation resistance within a temperature range of 100°C to 800°C, demonstrating outstanding strength retention at elevated temperatures and making it ideally suited for a wide array of high-pressure and high-temperature operating conditions. However, this superior performance comes at a significant cost, with its price point standing at approximately eight times that of 316L stainless steel. In contrast, 316L stainless steel—being an iron-based alloy (with iron as its primary matrix)—contains only 16%–18% chromium, 10%–14% nickel, and 2%–3% molybdenum, positioning it as an economical choice for general corrosive environments.It is suitable for use in environments involving medium-concentration nitric acid, organic acids, fresh water, or low-chloride conditions; however, it lacks resistance to chloride ion corrosion and is prone to pitting and stress corrosion cracking in chloride-containing media. Its maximum service temperature for prolonged use typically does not exceed 400°C; while it exhibits stable mechanical properties in low-to-moderate temperature environments, it suffers from the drawback of poor creep resistance at high temperatures.
In summary: If the process environment involves “ambient temperature, absence of chlorine, and non-strong acidic conditions,” 316L stainless steel is sufficient for use; however, should the application involve any one of the extreme conditions—such as high temperature, high pressure, strong acids (particularly mixed acids), or high chloride ion concentrations—Hastelloy becomes an irreplaceable “protective core.”
## Hastelloy Wire Mesh
Much like ordinary metal wire mesh, Hastelloy wire can be fabricated using various weaving techniques to produce mesh products with diverse structures—such as square-aperture mesh, dense-weave mesh (Dutch weave), and reverse-weave mesh. It is important to note that the inherent material properties of Hastelloy wire make it difficult to draw down to extremely fine gauges, unlike stainless steel wire. In standard mass production, 200 mesh represents the practical processing limit for woven Hastelloy mesh; beyond this threshold, manufacturing complexity rises sharply while yield rates plummet, making such fine meshes extremely rare in the commercial market. The typical wire diameter range for stable production falls between 0.1 mm and 12 mm. If operating conditions demand high filtration precision (equivalent to or exceeding 200 mesh), the Dutch weave technique offers a viable solution: utilizing either plain Dutch weave or twill Dutch weave patterns, this method employs relatively thicker wires to achieve absolute filtration precision at the micron level. Although the nominal mesh count of such products may appear low, their filtration performance is equivalent to—or even superior to—that of high-mesh-count square-aperture mesh, thereby effectively overcoming the technical bottlenecks associated with processing ultra-fine Hastelloy wires.
## Application Fields of Hastelloy Wire Mesh
1. **Petrochemical Industry:** Used in critical components such as reactor catalyst recovery systems, acid pickling tower demisters, distillation column internals filtration, and heat exchanger filter elements.
2. **Flue Gas Desulfurization (FGD):** Applied in absorption tower mist eliminators, slurry filters, and similar equipment. Since flue gas contains high concentrations of sulfur dioxide and chlorides, it creates a highly corrosive mixed environment of dilute sulfuric acid and chloride ions; the exceptional acid resistance and resistance to reducing environments of Hastelloy C276 make it the standard material of choice for this industry.
3. **Nuclear Industry:** Primarily utilized in scenarios demanding high safety standards and resistance to extreme corrosion—such as filters for nuclear waste treatment and boric acid recovery systems.
4. **Marine Engineering:** Suited for high-salinity, corrosive environments—including pretreatment filtration screens for seawater desalination, filtration screens for offshore platform equipment, and filters for seawater lift pumps.
5. **Biopharmaceuticals:** Employed in processes with stringent requirements for material corrosion resistance and purity—such as the filtration of high-purity Active Pharmaceutical Ingredients (APIs) and sterile filtration within fermentation tanks.
6. **Acetic Acid/Acetic Anhydride Production:** Serves as a core material for reactor screens and product refining filters, capable of withstanding the highly corrosive media encountered during the production process.
7. **New Energy Sector:** Applied in emerging, high-end applications—such as the electrode mesh support layers for hydrogen production via water electrolysis, and acid leaching filtration systems for power battery recycling.
