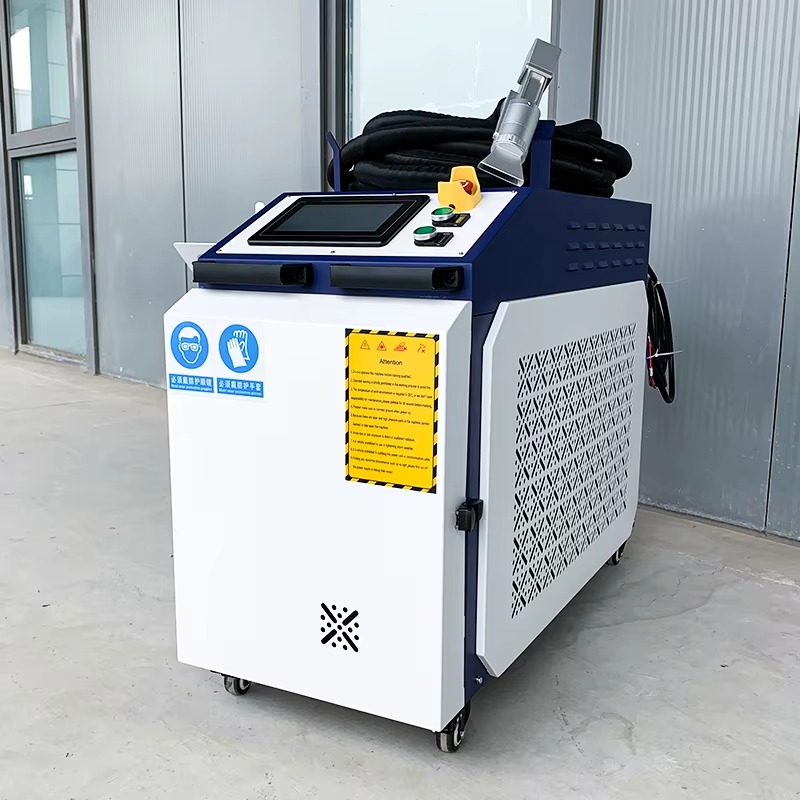

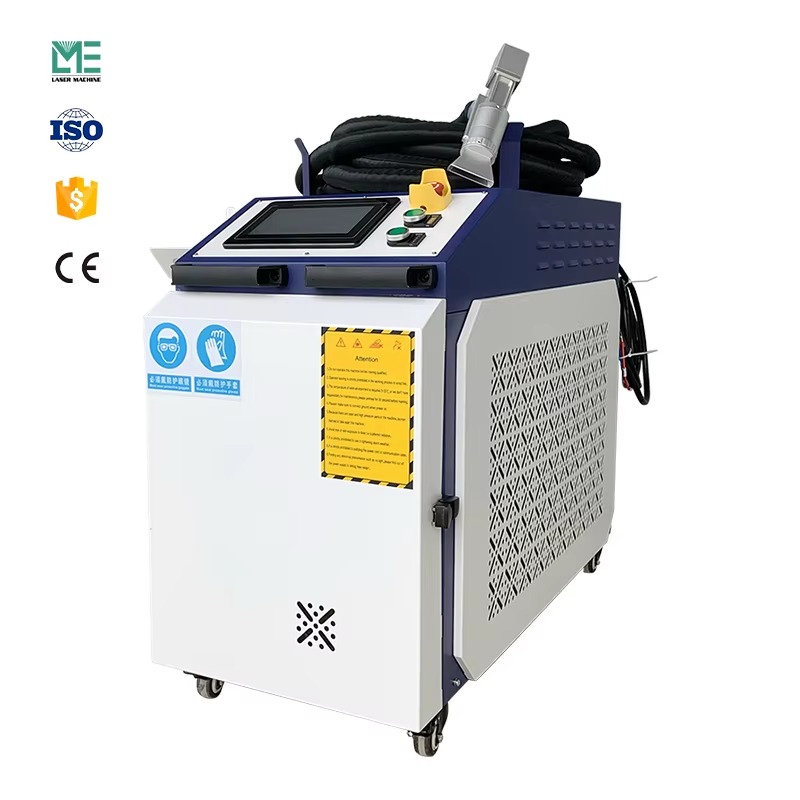

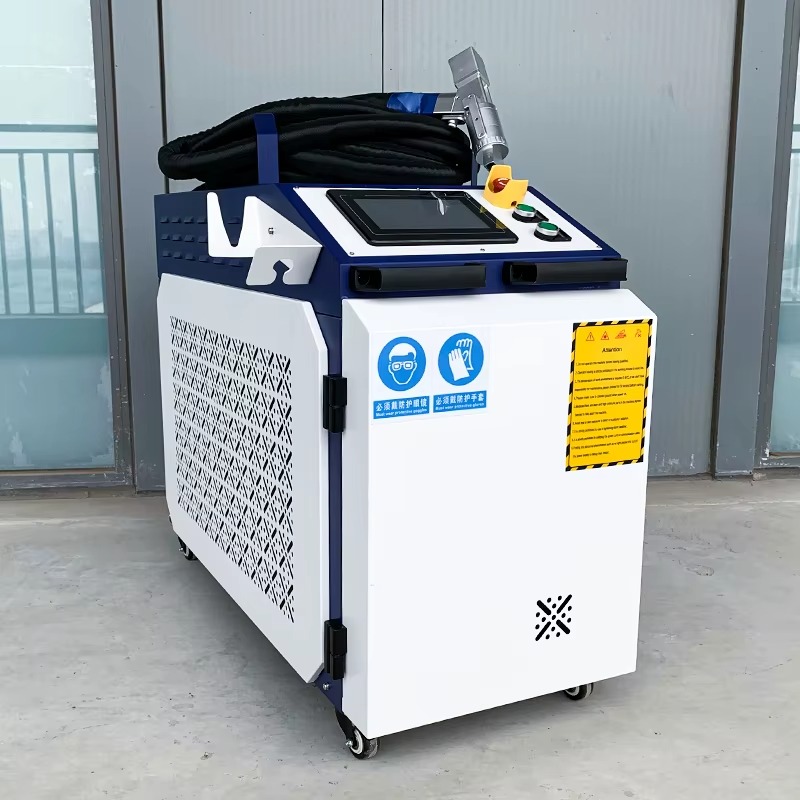

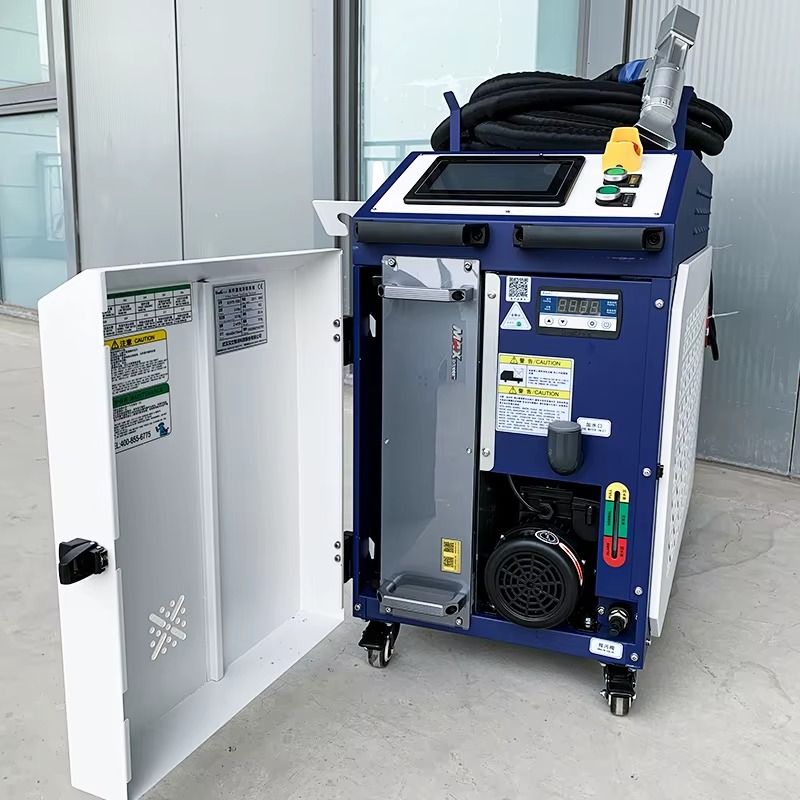

Laser cleaning machine
Laser cleaning machines – a revolutionary solution for industrial surface treatment. Quickly remove rust, oil, coatings, and oxide layers; environmentally friendly and efficient, requiring no consumables.
Technical parameters
Product name | Laser cleaning machine |
Laser power | 1000W / 1500W / 2000W/3000w |
Wavelength type | continuous |
Power supply stability | Better than 5% |
Power adjustment range (%) | 10-100 (gradient adjustable) |
Repetition frequency (kHz) | 20-200 (gradient adjustable) |
fiber length | 5-10 meters |
cooling method | water cooling |
Scan range | 5 mm ~ 120 mm, continuously adjustable |
Field lens focal length (mm) | 160 mm (optional 160 mm - 500 mm) |
focus depth | Maximum 10 mm |
overall size | Approximately 1055 mm x 620 mm x 1090 mm |
gross weight | Approximately 190 kilograms |
Cleaning head weight | Regarding 1.9 kg |
Voltage | 220V / 380V, 50 / 60Hz |
working temperature | 5℃~40℃ |
Note: The above parameters can be optimized and customized according to working conditions.
Product Features and Benefits
- Efficient Cleaning: Quickly removes rust, oil, coatings, and more with high cleaning efficiency.
- Precise Control: Adjustable laser power and frequency ensure uniform cleaning results.
- Environmentally Friendly: No need for chemicals or abrasives, eliminating secondary pollution.
- Increased Efficiency: Automation saves time and labor, boosting production efficiency.
- Fine and Safe: Does not damage the substrate, perfect for high-precision industries.
Product application industry
- Aerospace: Cleans aerospace parts, removing coatings and contaminants.
- Automotive: Clears welding spots, paint, and debris from automotive parts.
- Art Restoration: Safely cleans antiques and artworks without damaging the material.
- Shipbuilding: Removes rust and marine pollutants from ship components.
- Construction: Cleans building surfaces and steel structures, especially facades.
- Food & Pharma: Cleans equipment and pipelines to meet hygiene standards.
FAQ
The laser cleaning machine is suitable for various metal surfaces like steel, aluminum, and copper. It can also remove coatings, oil, rust, and welding residues. It is effective on complex and precision parts as well.
Laser cleaning does not use chemicals or abrasives, so it produces no harmful waste and meets environmental standards. It is a green, eco-friendly cleaning method with no secondary pollution.
Laser cleaning is a non-contact technology. With precise control, the laser beam does not damage the substrate, making it suitable for high-precision parts and surfaces with strict requirements.
Maintenance is relatively simple and mainly involves regular cleaning and checking of the laser source. With proper use, the machine is durable and has low maintenance costs.
