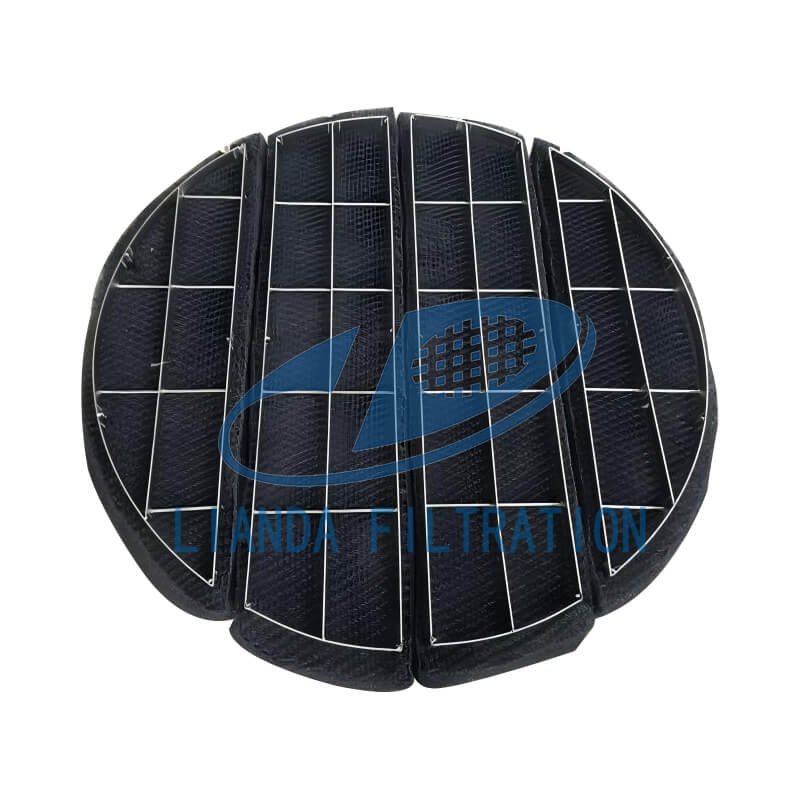

Titanium wire mesh demister
Titanium wire mesh demister
Titanium wire mesh demister is a high-end gas-liquid separation device designed for extremely corrosive environments. This product is woven with pure titanium wire and has excellent corrosion resistance, especially suitable for occasions containing chlorine, strong acid, high temperature and humidity. Titanium wire mesh demister can not only efficiently capture fine droplets, but also ensure the long-term stable operation of the equipment. It is an indispensable demisting solution for high-end chemical, pharmaceutical, chlor-alkali and seawater desalination industries.
Technical parameters
project | Parameter description |
Material | Industrial pure titanium (TA1, TA2) |
Wire diameter | 0.15mm – 0.30mm (customizable) |
density | 4.5g/cm³ (titanium) |
operating temperature | Up to 300°C (short term up to 400°C) |
Specific surface area | 200–450 m²/m³ (depending on weaving) |
Separation efficiency | ≥99% (for droplet size ≥3μm) |
Pressure drop range | 200–500 Pa (depending on working conditions) |
Standard thickness | 100mm (50~150mm can be customized) |
size shape | Round, rectangular, segmented, and special-shaped customizations are all available |
Note: The above parameters can be optimized and customized according to working conditions.
Product Features and Benefits
Strong corrosion resistance
As a corrosion-resistant demister pad, titanium wire mesh has extremely high corrosion resistance to chlorine, hydrochloric acid, nitric acid, seawater, etc., far exceeding stainless steel and nickel alloy.
High separation efficiency
The fine woven structure enables it to have excellent droplet capture ability, which can effectively intercept droplets above 3 microns, and the separation efficiency is as high as 99% or more.
High temperature stability
Titanium has excellent thermal stability and is suitable for most high-temperature reaction towers or wet tail gas treatment towers with long-lasting and stable performance.
Lightweight and high strength, excellent mechanical properties
Compared with similar metals, titanium has high strength and light specific gravity, which is conducive to reducing equipment load and extending the service life of the tower.
Environmentally friendly and durable, cost-effective
Although the single investment is slightly higher, it has a long life, less maintenance, and low operating costs, and is generally highly economical.

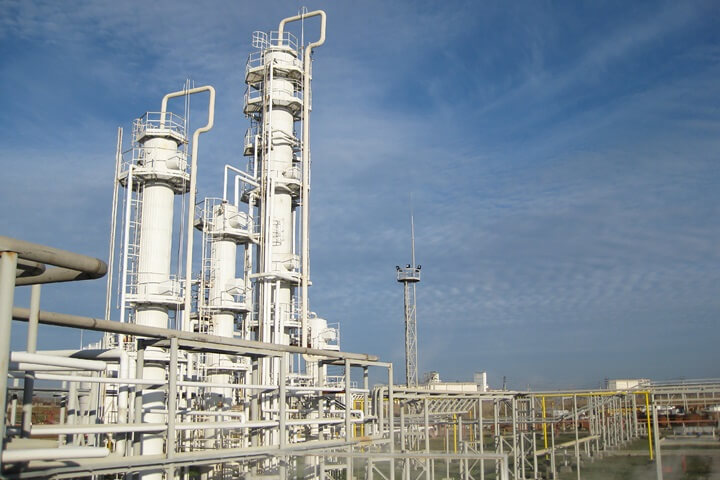

Product application industry
Fine chemicals: highly corrosive gas treatment, chlorination reaction tower, high-concentration acid tail gas purification
Pharmaceutical industry: droplet control in API synthesis tower, reaction tail gas recovery system
Chlor-alkali industry: chlorine purification, hydrogen drying, hydrochloric acid gas recovery tower
Seawater desalination: high-salt, high-humidity air flow demisting, protection of condenser and heat exchange system
New energy and metallurgy: titanium dioxide production, rare metal refining, high-purity gas purification equipment
FAQ
Titanium is extremely resistant to hydrochloric acid, chlorine, nitric acid, etc. It is particularly suitable for environments with high humidity, high corrosion, chlorinated media, etc. It is the first choice for working conditions that conventional metal demisters are unable to handle.
Titanium has much better corrosion resistance than 304/316L stainless steel, and is lighter and more resistant to high temperatures. Although the cost is higher, it has a longer service life, lower maintenance frequency, and lower overall cost.
Yes. LiandaFiltration supports customized design in various sizes, structural forms and installation methods to meet the integrated installation requirements of tower modification or new systems.
Yes. Titanium wire mesh has a stable structure and can withstand moderate gas impact and pressure with stainless steel support grids or frames, making it suitable for medium and low pressure towers.
Yes. We provide third-party titanium material testing reports, material composition tables, certificates of origin and RoHS environmental certification to ensure that our products meet international industrial standards.
