Sintered Mesh Fiter

What is sintered mesh

The sintered mesh is made by single or multi layer wire mesh bonded together at a specific temperature and high pressure. After sintered all the wires of the mesh will be no displacement and move even under a high pressure. And the shape of mesh is permanently fixed will not fall off or move even under high pressure.

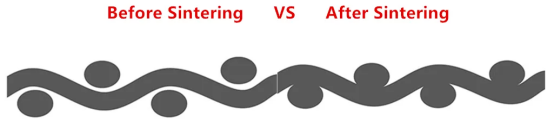

before sintering VS after sintering

Each layer of the laminated sintered mesh is intricately interwoven with each other, forming an ideal filtering structure with fine and uniformly shaped pores.

The mainly material of sintered mesh is SS316, ss316L. But for special environments, it also can be made by other spepcial materials such as : INCONEL, HASTELLOY, MONEL, DUPLEX and so on.

It has excellent filtration accuracy, mechanical strength, corrosion resistance, pressure resistance, processing performance, and can be regenerated after washing.

Sintered mesh filter is a high performance filter products. It made by single or multi layers sintered mesh. It’s unique structure and material properties enable it to perform excellent in high temperature, high pressure and corrosive environments. This sintered mesh products are widely used in chemical industry, petroleum, pharmaceutical, food, water treatment and other fields.

Material Properties:

  1. Structure composition:Standard sintered mesh is made by 5 layers  :protective layers, control layer diversion layer and 2 reinforcing layers. It have a stable structure and mechanical strength .
  2. Standard size: 500*1000/ 100*1000/ 600*1200/ 1200*1200/ 1200*1500 any other size can be customized.
  3. Thickness : standard thickness 1.7mm (for 5 layer standard oe )2mm/3.5mm (can be customized)
  4. Material: standard size SS304, SS316L, 904L, Hastalloy , Duplex and other materials which are resistant to corrosion by acidic and alkaline .
  5. Cleaning types: The sintered filter is a surface filtration, it can be reused through ultrasonic cleaning, backflushing or chemical cleaning, and has a long service life, thereby reducing maintenance costs.

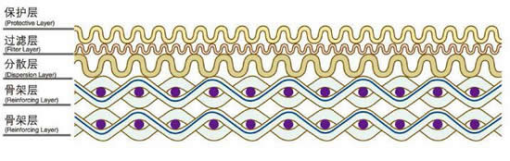

Internal structure of sintered mesh filter element

Standard 5 layer technical data sheet

NAME

 RATING

CONTROL LAYER

THICKNESS

POROSITY

LD-1

1

400×3000

1.7

1.81

LD-2

2

325×2300

1.7

2.35

LD-5

5

200×1400

1.7

2.42

LD-10

10

165×1400

1.7

3.00

LD-15

15

165×1200

1.7

3.41

LD-20

20

165×800

1.7

4.50

LD-25

25

165×600

1.7

6.12

LD-30

30

400

1.7

6.86

LD-40

40

325

1.7

7.10

LD-50

50

250

1.7

8.41

LD-75

75

200

1.7

8.7

LD-100

100

150

1.7

9.1

Note: The above parameters can be optimized and customized according to the working conditions.

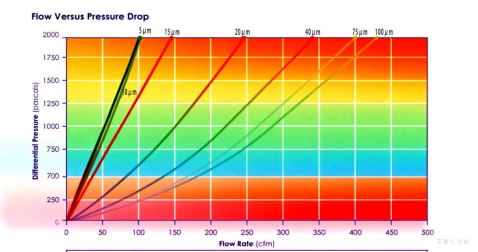

Pressure difference flow curve graph (10” cylinder filter)

Pressure difference flow curve graph (10” cylinder filter)

Features:

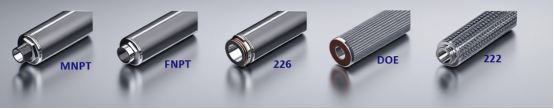

1. Connection : Standard connection type 226,222, thread , tri-clamp , flange , lever connections and other specially customized interfaces. These diverse connection methods meet the requirements of various application scenarios.

Connection : Standard connection type 226,222, thread , tri-clamp , flange , lever connections and other specially customized interfaces. These diverse connection methods meet the requirements of various application scenarios.

2. Process ability: The sintered mesh material can be welded and joined, So it can be customized different size and sturcture by different environment.

3.Filter rating : norminal rating :1-100micron .

Application:

Oil and petro
During the oil refining, Sintered mesh filter used to remove the sand , impurities and other substances include in the crude oil, protect the normal working of the subsequent equipment and reduce the equipment wear and malfunctions.
In the production of chemical raw materials, the sintered mesh filter used to remove impurity from the chemical raw material, and it is also can be used in the carbon removal filtration and fine filtration to ensure product quality.
Meanwhile, these products also can be used for high temperature and high corrosion fluids to meet the complex working conditions in chemical production.

Food and Pharmaceutical industry:
In the food and pharmaceutical industries, filters can be used to filter various foodand pharmaceutical raw materials, ensuring the purity and safety of the products..

Water treatment
In the water treatment filed, sintered filter can be used to remove the suspended matters, particles and microorganisms from the water and improve the quality of the water.And protect the downstream equipment and pipe.

Air filtration
In the air filtration , sintered filter tube can remove the pollutants such asdust , pollen and microorganisms in the air, and improve the air quality , protecting people’s health.

Energy and Environmental Protection:
In energy industry, it can be used for the filtering of natural gas, liquefied gas and hydrogen, improve the gas quality and ensuring the safe transportation and efficient use of the energy.
In environmental protection,these filters used for the high gas filtration and purifying of the smoke, exhaust gas, PM2.5 and so on. Helping to reduce air pollutant emmissions and improve air quality.

Others
In the chemical fiber film industry, these filters can used in various polymer melt materials filtration and purify to ensure the quality of the film products;
in the filtration processes of the electronics and semiconductor industries, To meet the ultra clean environments and high precision filtration requirements, these sintered filters can also serve as the filter medium for basket-type filters, screen-type filters, etc., and play a role in gas distribution, liquid bed orifice plate materials, etc.

Compared with traditional filter elements, the advantages of sintered mesh filters are extremely prominent. The service life of it is far exceeds that of paper or cotton filters. Under normally conditions, it can be repeatedly cleaned and used for hundreds of times, significantly reducing the filtration cost.
At the same time, its characteristics of withstanding high and low temperatures and corrosion enable it to work stably in various harsh environments, whether it is the filtration of high-temperature boiler flue gas or the filtration of corrosive chemical waste liquids, it can handle them very well.

With the continuous development of technology, the performance of sintered mesh filters is still being continuously optimized. The research and application of new materials have made its filtration accuracy higher and service life longer; the combination of intelligent cleaning technology makes its maintenance more convenient and efficient. We believed that in the future, sintered mesh filters will play an important role in more fields and contribute more to promoting industrial progress and environmental protection.
