Backwash automatic filter
Backwash automatic filter
The backwash automatic filter is an online self-cleaning, energy-efficient and efficient automatic backwash filter. The whole machine is made of 316L stainless steel with precision welding, built-in wear-resistant filter element and intelligent control system, which can automatically backwash without stopping the machine and keep the filter channel unobstructed. Whether it is circulating cooling water, process water or municipal recycled water, LiandaFiltration can provide you with a stable and reliable online backwash filtration solution.
Technical parameters
parameter | Specifications Range |
Material | 304/316L stainless steel |
Filtering accuracy | 50 μm, 100 μm, 200 μm (customizable) |
Maximum working pressure | 10 bar (145 psi) max. |
working temperature | 0-80°C |
Processing flow | 5-300 m3/h (multiple models available) |
Cleaning method | Timed cleaning/automatic backwashing triggered by pressure difference |
control system | PLC+LCD touch screen |
Drive mode | Solenoid valve switching + automatic spraying device |
power supply | 220V/380V, 50/60 Hz |
Product Features and Benefits

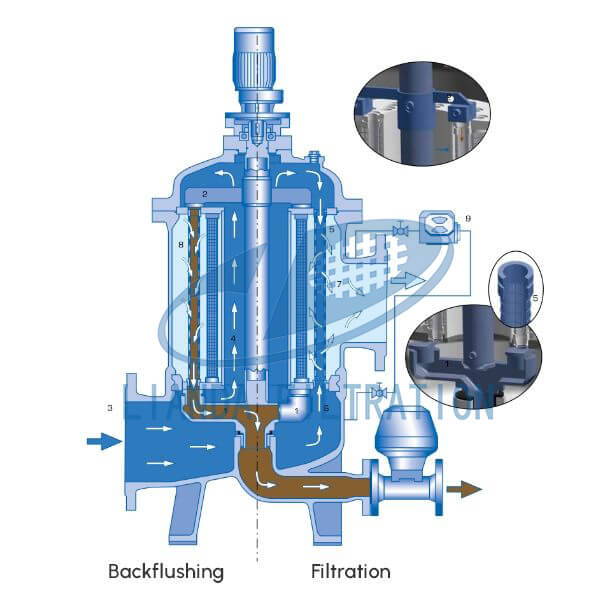

Real non-stop backwashing with built-in multi-way backwashing nozzles, combined with self-cleaning water filtration technology, the flushing process does not need to disconnect the inlet and outlet pipes to ensure the continuous operation of the production line.
Intelligent monitoring PLC control and differential pressure sensor real-time linkage, when the differential pressure reaches the set threshold (such as ΔP ≥ 0.3 bar) or according to the preset time interval, can automatically start the backwash, greatly reducing the manual intervention.
Energy and Water Saving The precise blowing design makes each cleaning consume only 20% of the water volume of traditional backwashing equipment, taking into account both efficient cleaning and resource saving.
Wear-resistant and corrosion-resistant
The filter element is made of sintered stainless steel or agglomerated fiber material, combined with electrochemical polishing of the inner wall, resistant to chemical media scouring, service life of up to 5 years or more.
Maintenance
Simple Modular structure design, control box and filter box can be quickly separated, no maintenance; common faults at a glance, greatly reducing the maintenance time.
Application Sectors

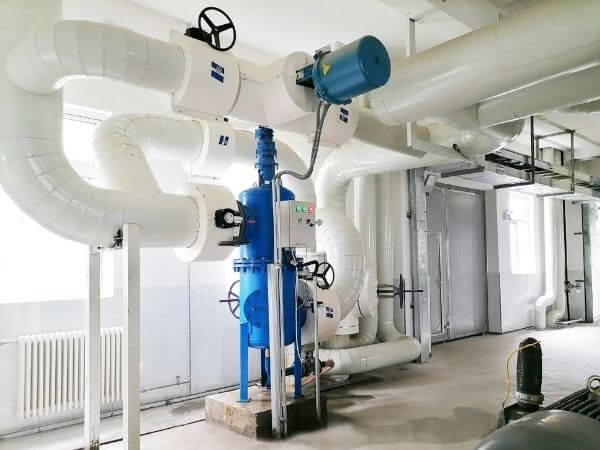

Circulating Cooling Water: Filtration and protection of cooling towers and closed cooling systems in the power, steel and petrochemical industries.
Process water: pretreatment of production water in chemical, pharmaceutical and textile industries to improve the efficiency of downstream equipment.
Municipal water: on-line filtration and rainwater reuse systems for water in central water to prevent clogging of pipe networks and sprinkler equipment.
Seawater desalination pre-treatment: Removal of suspended solids and algae from seawater and protection of reverse osmosis membranes.
Food and beverage: continuous online filtration of circulating holding water, cleaning water and cooling water of production line.
FAQ
The touch screen interface allows users to freely switch between timing mode (e.g. every 4 hours) or pressure differential mode (e.g. ΔP ≥ 0.3 bar) to flexibly adjust according to working conditions.
LiandaFiltration adopts multi-point spraying and buffer valve design. The pressure fluctuation during the flushing stage is less than 5%, which has minimal impact on the downstream system.
Under normal water conditions, the filter element does not need to be replaced frequently. It is recommended to replace it every 12-18 months. The PLC system will also prompt a replacement reminder based on the number of cleanings.
The equipment is equipped with adjustable feet and non-slip pads. It is recommended that the ground be flat and a 0.5 m maintenance space be reserved around it. No special foundation is required.
