basket strainer
basket strainer

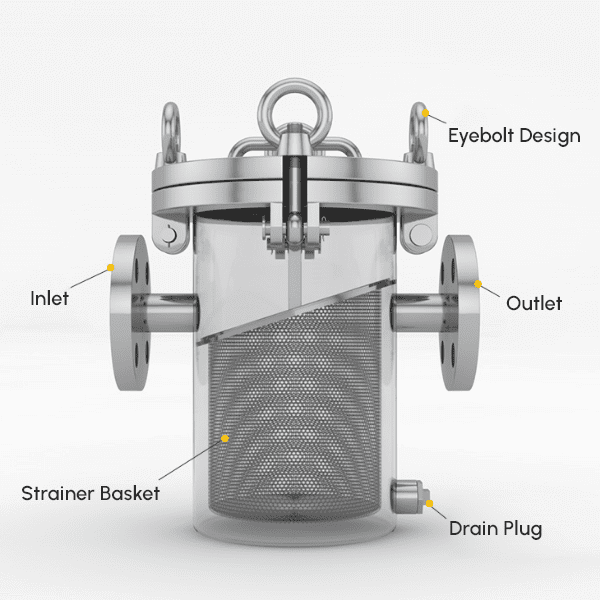

LiandaFiltration’sBasket filter is a highly efficient and durable industrial pipeline filtration equipment, mainly used to intercept solid particles (such as iron filings, sand, fiber, etc.) in liquids or gases, and protect downstream equipment such as pumps, valves, and instruments from being damaged by impurities. Its core component is a detachable basket filter, which has the characteristics of large filtration area, low pressure loss, and easy maintenance. It is widely used in petrochemical, water treatment, food and pharmaceutical, power and other industries.
parameter term | Specification range |
material | 304 / 316L Sanitary Stainless Steel |
Filter basket type | Wire mesh baskets, perforated baskets, stainless steel sintered baskets |
Filtration accuracy | 50 µm, 100 µm, 200 µm, 500 µm (configurable) |
Maximum working pressure | 16 bar (232 psi) |
Maximum working temperature | 180 ℃ |
connection method | Tri-Clamp, Flange (DIN/ANSI/JIS), Threaded |
capacity | 5L, 10L, 20L, 30L (can be customized according to filter basket size) |
surface treatment | Mirror polished inside and outside, Ra ≤ 0.6 µm |
Efficient particle separation
The precision welded basket filter can remove large particle impurities in water, oil, and chemical media, protect downstream equipment, and reduce maintenance costs.
Quick disassembly and cleaning
The large opening quick installation design allows one person to complete the removal and cleaning of the filter basket within 30 seconds, improving the continuity of the production line.
Corrosion and pressure resistance
The 316L material combined with the one-piece molding process has been tested with 1.5 times the pressure to ensure the safety and stability of the high-pressure basket filter.
Multi-basket parallel connection
Supports parallel installation of multiple filter baskets to meet the high-flow basket filtration scenario, and can be repaired without stopping the line for a single basket.
Sanitary standard
The mirror-polished inner wall effectively reduces microbial retention and meets the cleanliness requirements of the food and pharmaceutical industries such as FDA and 3-A.
Food and Beverage: Pre-filtration of fruit and vegetable juice, beer, dairy products and vegetable oil to ensure taste and hygienic safety.
Chemical Coatings: Pre-filtration of resins, paints and inks to prevent solid particles from clogging the spraying system.
Pharmaceutical Biology: Pre-treatment of buffers, culture media and water for injection to improve the reliability of aseptic production.
Petroleum and Petrochemicals: Pre-filtration of hydraulic oil, lubricating oil and fuel to extend the life of pumps and valves.
Seawater Desalination: Pre-treatment and filtration of seawater to effectively remove floating particles and sticky substances.
FAQ
Select the appropriate aperture and basket type according to the media type, particle size and processing flow rate; sample tests can also be provided to ensure the optimal configuration.
It is recommended to check the pressure difference weekly (ΔP > 0.2 bar) or clean it when production drops, and the normal cycle is 1–2 weeks.
All wetted surfaces are polished to Ra ≤ 0.6 µm and have FDA/3-A certified filter baskets to ensure food and pharmaceutical grade sterility.
Supports customization of filter basket size, connection method and interface position to meet various on-site installation requirements.
